Factory-style molded guards are a better fit for the Avalanche wheel opening than broad universal flaps. The old page incorrectly extended fitment to 2014 even though Avalanche production ended after the 2013 model year.
Fitment first
What to confirm before buying
Begin with the VIN and the exact GM catalog entry for part 19212820. The supplied catalog evidence supports selected 2007-2012 Chevrolet Avalanche front applications, not every truck across the entire body generation. For a 2013 vehicle, require explicit confirmation rather than extending the earlier range. The saved page excludes Z71 models and Avalanches equipped with retracting or power running boards. It also says VIN confirmation applies to factory-equipped parts and accessories, so an aftermarket flare, replacement wheel-opening molding, altered step, or repaired fender can still change the physical fit. Confirm front versus rear position, left and right piece shapes, existing liner holes, wheel-opening trim, and all included hardware. Do not use fitment data from a Silverado splash-guard set merely because the trucks share model years or some platform components. The molded contour and mounting points must match the Avalanche configuration named for the GM part.
Product at a glance
| Reference part | GM 19212820 |
|---|---|
| Vehicle | Chevrolet Avalanche |
| Documented years | Selected 2007-2012 applications |
| Part type | Molded splash guards |
How this accessory works in practice
This page concerns factory-style molded front splash guards for the Chevrolet Avalanche, using GM part 19212820 as the reference application. The rebuilt catalog records selected 2007-2012 front fitments and warns that 2013 compatibility must be confirmed separately. The Avalanche model line ended after 2013, so a 2014 Avalanche claim is incorrect. Saved product text describes molded guards made from reinforced polypropylene and intended to help reduce mud, dirt, snow, salt, gravel, and general road spray reaching the lower body. Their shaped contour is more vehicle-specific than a flat universal flap, but fitment varies with trim, wheel-opening molding, and running-board equipment. This reference is for front guards; a rear kit is a separate selection rather than an assumed part of the package.
Daily use and ownership

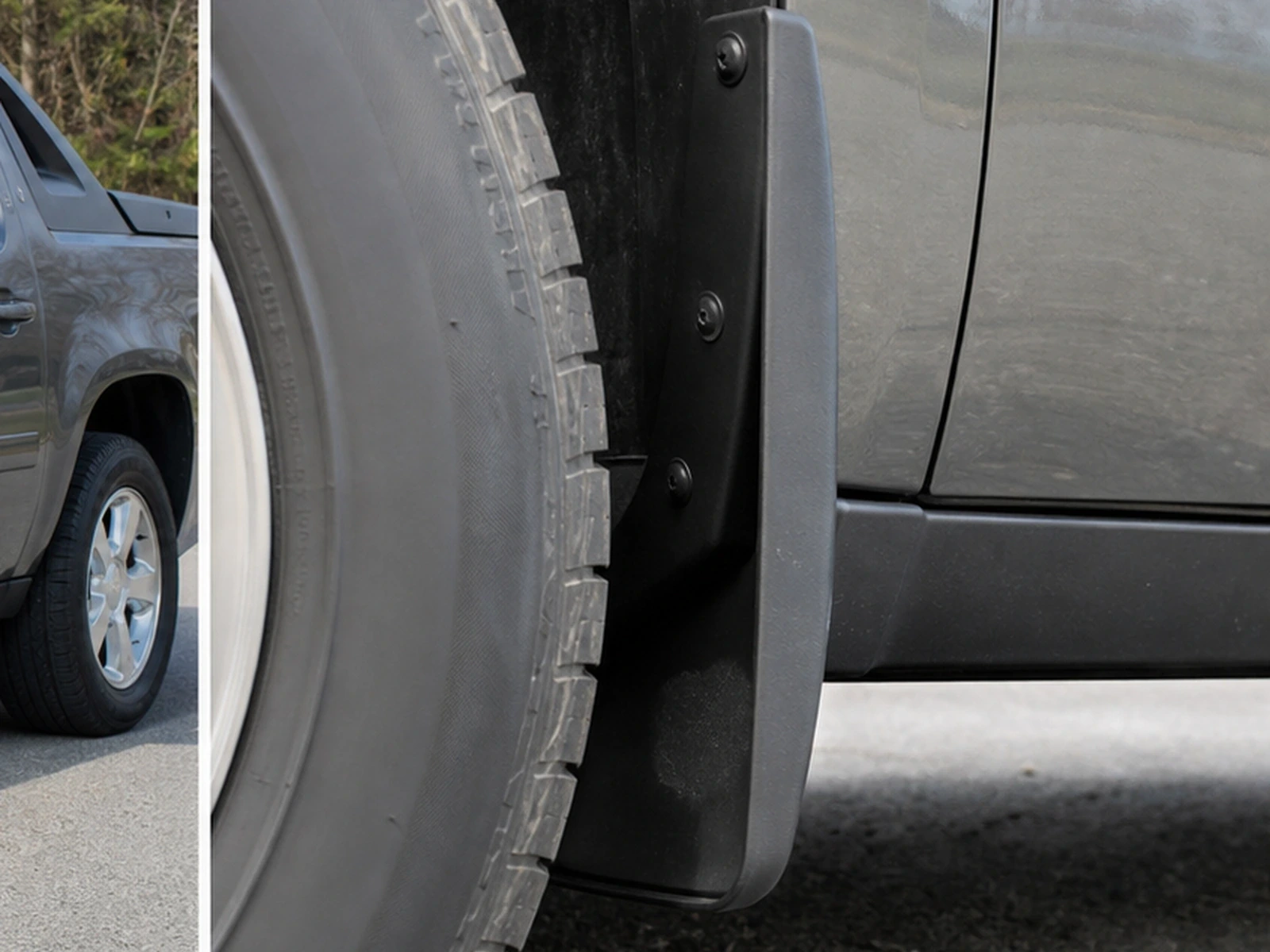

Properly fitted front guards sit behind the front tires and help reduce the amount of spray and small debris thrown toward the rocker area and side of the vehicle. They cannot keep the body completely clean, prevent every stone chip, or replace routine corrosion care in climates that use road salt. Because the shape follows a specific wheel opening, it should remain more stable and visually integrated than a generic flat flap when all mounting points match. Check ground and tire clearance after any suspension, wheel, or tire change. A splash guard should never contact the tire through steering travel or normal suspension movement, and it should not be used as a step or pushed aside by a power running board.
Installation and setup
Clean the wheel liner and the painted edge around the mounting area before test fitting. Remove packed debris so the molded guard can sit against the intended contour without a false gap. Hold each front piece in place and confirm that every existing hole, edge, and wheel-opening molding aligns naturally. Keep fasteners loose until all attachment points are started, then tighten them evenly according to the kit instructions. Use the supplied hardware or documented corrosion-resistant replacements; do not force an oversized screw into a mismatched hole. A molded guard that must be twisted hard to follow the body is likely the wrong trim application or is being obstructed by a flare, running board, liner, or previous repair. Stop rather than drilling new holes simply to rescue a mismatch. After both sides are mounted, turn the steering fully left and right and inspect tire clearance. Check that the guard does not touch a retracting step, although the saved application already excludes vehicles with that equipment. Reinspect alignment after the first drives on wet or gravel-covered roads, when movement or a loose attachment is easiest to notice.
Care and maintenance
Rinse salt, mud, and gravel from both the visible face and the pocket between the guard and liner. Trapped material can hold moisture against fasteners and body edges. During washing, inspect for cracks, torn holes, missing hardware, rubbing on paint, or a lower edge that has folded toward the tire. Tighten only to the documented requirement because overtightening can damage a molded mounting hole. After tire or brake service, verify that the liner and guard fasteners were returned to the right locations. Replace a guard that no longer holds its contour or cannot remain clear of the tire.
Final checks before ordering
Use the VIN to confirm the front application and inspect both wheel openings before ordering. Photograph the molding, liner, running-board area, and every existing fastener, then compare the left and right sides for previous repairs or missing hardware. Measure clearance to the tire at full steering lock and note any nonfactory wheel offset, larger tire, flare, or liner modification. Confirm that the package contains a front pair rather than a four-wheel set and that the required clips and screws are included. For a 2013 Avalanche, obtain explicit catalog confirmation for that year instead of extending the earlier application from appearance alone.
Buy it when
- Choose GM reference part 19212820 when a VIN and catalog check confirms the Avalanche's selected 2007-2012 front application, the vehicle does not have the excluded Z71 or retracting-step configuration, and its factory wheel-opening molding remains compatible. It suits an owner who wants a molded, factory-style front guard rather than a universal flap.
Skip it when
- Skip it when a 2013 application has not been explicitly verified, when a seller claims a 2014 Avalanche, or when the vehicle has excluded trim, power running boards, aftermarket flares, or altered wheel openings. Skip it as well if a complete front-and-rear set is expected, because this reference concerns the front position only.
Frequently asked questions
Does part 19212820 fit every 2007-2013 Avalanche?
No. The rebuilt catalog supports selected 2007-2012 front applications and calls for separate confirmation on 2013 vehicles. Trim, wheel-opening molding, running boards, and factory equipment still matter, so use the VIN and exact GM application record.
Is a 2014 Chevrolet Avalanche application valid?
No. The Avalanche model line ended after the 2013 model year. A listing that extends Avalanche fitment into 2014 should not be used as proof, even if it also names related Chevrolet trucks.
Are rear splash guards included with this reference part?
Do not assume so. The source material identifies the reference as a front molded splash-guard application, and the rebuilt catalog says front and rear kits are separate. Verify package contents and the rear part number independently.
Will these guards fit Z71 or power-running-board vehicles?
The saved application text excludes Z71 models and Avalanches with retracting or power running boards. Those features change the nearby body and step layout, so forcing the molded guard into that space is not an acceptable fitment workaround.
